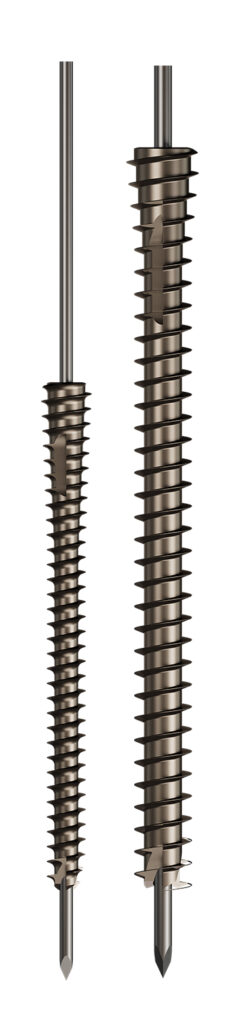

arthrostab
Ø 4.6 mm Ø 7.0 mm
ISO 5832-3 titanium screw
Midfoot and hindfoot
Sterile packaging
Pin Ø 1.5 for screw Ø 4.6 mm
Pin Ø 2.2 for screw Ø 7.0 mm
Arthostab EAGLE screws are designed for use in midfoot and hindfoot arthrodesis. They are used in addition to EAGLE screws with the same instrument set.
Ø 4.6 : primarily used for the following indications:
– Talonavicular arthrodesis
– Midfoot arthrodesis (M1 / C1 Lapidus)
– MPGO arthrodesis
Ø 7.0 : primarily used for the following indications:
– Calcaneal osteotomy
– Subtalar arthrodesis
– Tibiotalar arthrodesis
Our references
Length from 20mm to 60mm
Length from 30mm to 90mm
| Ø 4.6mm | |
|---|---|
| Longueur | Références |
| 20 | 38.21.20 |
| 22 | 38.21.22 |
| 24 | 38.21.24 |
| 26 | 38.21.26 |
| 28 | 38.21.28 |
| 30 | 38.21.30 |
| 32 | 38.21.32 |
| 34 | 38.21.34 |
| 36 | 38.21.36 |
| 38 | 38.21.38 |
| 40 | 38.21.40 |
| 42 | 38.21.42 |
| 44 | 38.21.44 |
| 46 | 38.21.46 |
| 48 | 38.21.48 |
| 50 | 38.21.50 |
| 52 | 38.21.52 |
| 54 | 38.21.54 |
| 56 | 38.21.56 |
| 58 | 38.21.58 |
| 60 | 38.21.60 |
| Ø 7.0 mm | |
|---|---|
| Longueur | Références |
| 30 | 38.22.20 |
| 35 | 38.22.35 |
| 40 | 38.22.40 |
| 45 | 38.22.45 |
| 50 | 38.22.50 |
| 55 | 38.21.55 |
| 60 | 38.22.60 |
| 65 | 38.22.65 |
| 70 | 38.22.70 |
| 75 | 38.22.75 |
| 80 | 38.22.80 |
| 85 | 38.22.85 |
| 90 | 38.22.90 |
EAGLE ARTHROSTAB - INSTRUMENTS KIT
Ø 4.6 MM
The screws are supplied with one Ø 1.5 pin, length 150 mm, with a trocar tip.
Ø 7.0 MM
The screws are supplied with one Ø 2,2 pin, length 200 mm, with a trocar tip.

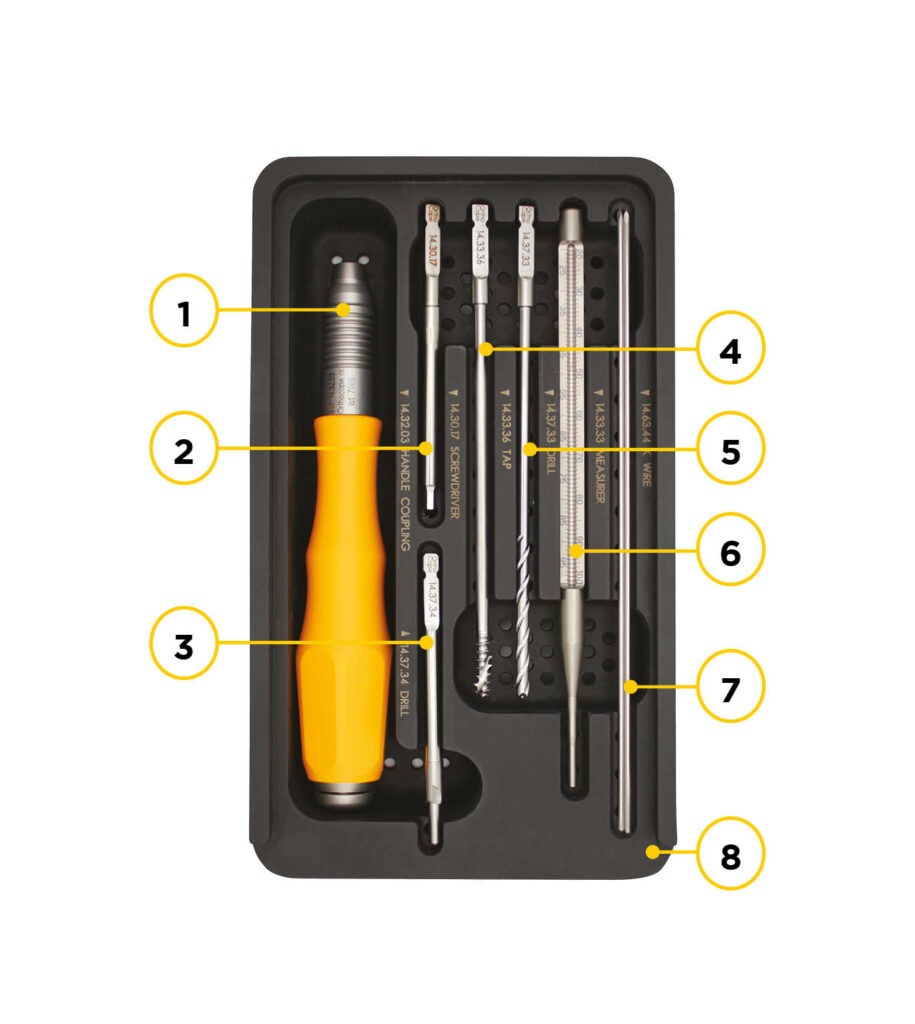

| N° | Produit | Références |
|---|---|---|
| 1 | Manche de tournevis AO universel | 14.32.03 |
| 2 | Tournevis (lame) pour vis Ø 4.6 | 14.30.17 |
| 3 | Forêt tête pour vis Ø 4.6 | 14.37.34 |
| 4 | Taraud Eagle Arthrostab Ø 4.6 | 14.33.36 |
| 5 | Forêt pour vis Ø 4.6 | 14.37.34 |
| 6 | Mesureur sur broche 150 mm | 14.33.33 |
| 7 | Broches Ø 1.5 Lg 150 mm 1 pointe trocart | 14.63.44 |
| 8 | Boite de rangement | 14.10.96 |

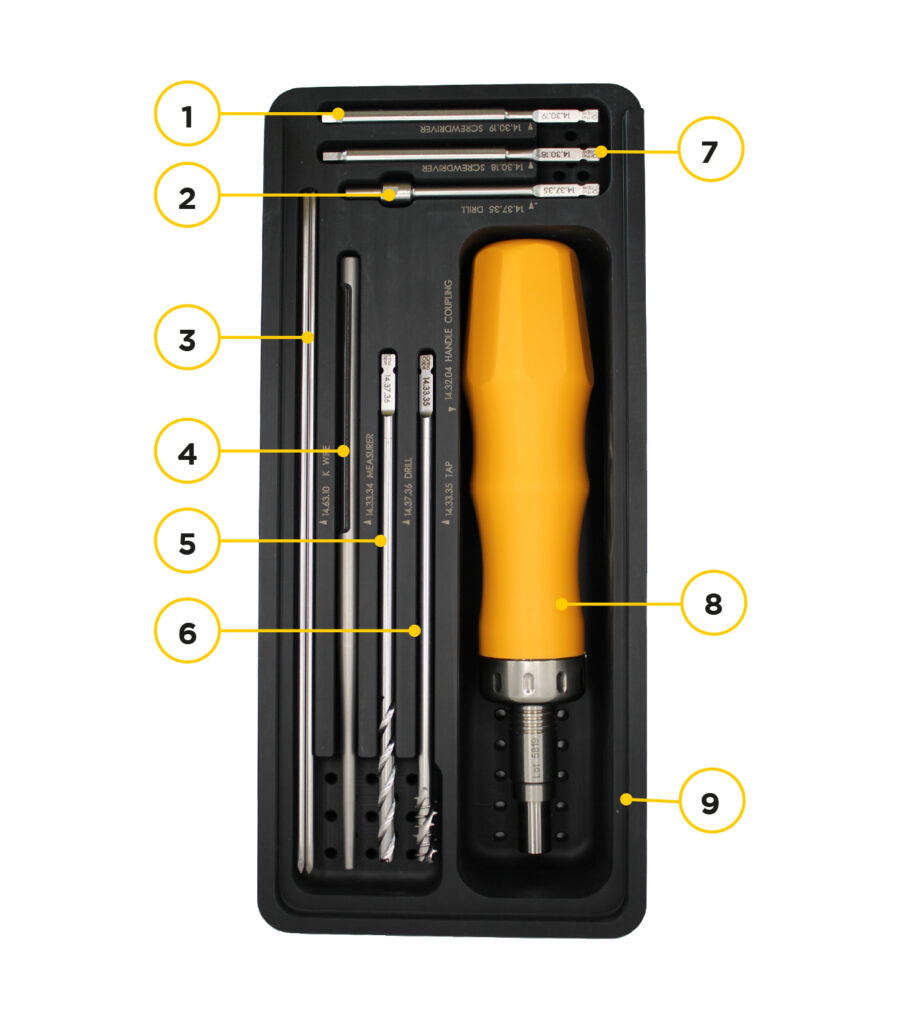

| N° | Produit | Références |
|---|---|---|
| 1 | Tournevis (lame) percé pour vis Ø 7.0 | 14.30.18 |
| 2 | Forêt tête pour vis Ø 7.0 | 14.37.35 |
| 3 | Broches Ø 2.2 Lg 200 mm 1 pointe trocart | 14.63.10 |
| 4 | Mesureur Eagle Arthrostab Ø 7.0 sur broche 200 mm | 14.33.34 |
| 5 | Forêt canulé pour vis Ø 7.0 | 14.37.36 |
| 6 | Taraud Eagle Arthrostab Ø 7.0 | 14.33.35 |
| 7 | Tournevis (lame) pour vis Ø 7.0 | 14.30.19 |
| 8 | Manche de tournevis Eagle Arthrostab Ø 7.0 | 14.32.04 |
| 9 | Boite de rangement | 14.10.97 |
For any additional questions regarding our products or ordering procedures, please contact us at info@ortho-cape.com.
